FL17 Star Led Flood Light Series Wide Power Coverage from 100W to 600W

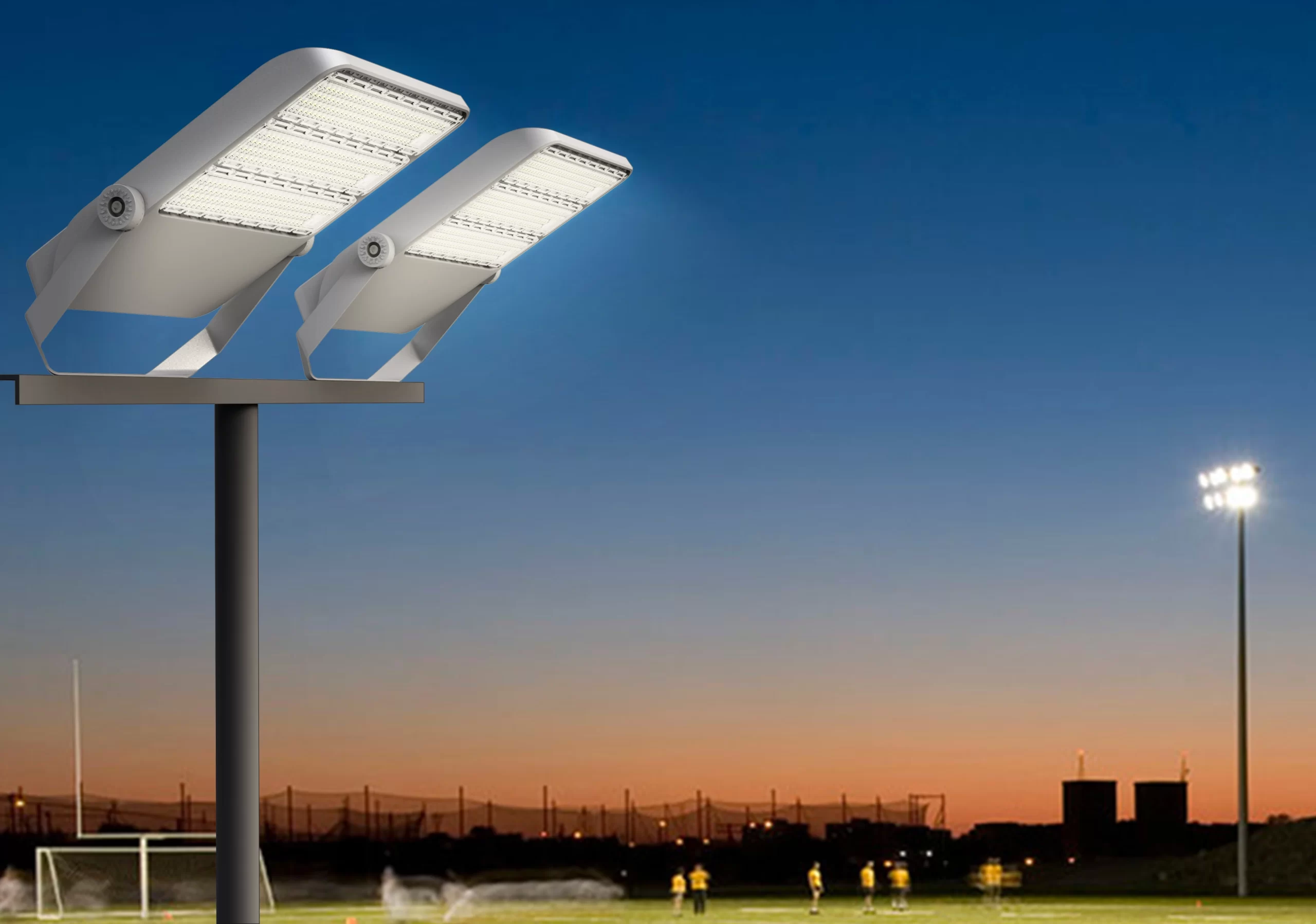

Star led flood light with four size models with a power range of 100W/150W/180W/200W, 240W/300W/400W, 450W/500W, and 600W. Light efficiency is 150 Lm/W and 130 Lm/W optional. Star bracket uses a U-shaped design, leaving a large space for workers to install the operation. Adjust the angle of the gear bracket to make the product more stable. The kind design of the incremental 15deg tick marks is provided in the casting of a single hex head bolt to allow for precise aiming and to facilitate the alignment of multiple luminaires. The grid of the heat sink is modularized with excellent heat dissipation and does not affect the structural strength of the product. Multiple beam spreads to meet custom project requirements and provide maximum light control. Star is suitable for small or medium areas, such as tennis courts, badminton courts, outdoor basketball courts, football training courts, parking lots, etc.

  • ● Light efficiency up to 150Lm/W.
  • ● Lumen output from 14,500Lm to 90,000Lm.
  • ● Beam angle : Symmetric and asymmetric available.
  • ● IP66 water-proof & 10KV surge protection.
  • ● 0-10V dimming, Dali2.
  • ● Operating Temperature: -40°C to +50°C.
  • ● Life Span L70B50 100,000h@25℃.
  • ● 7 years, Isolated (5 years, Non-isolated).
  • ● Certificates CB, CE, ENEC, RoHS available.
Contact us
Specification
Installation Guide
IES Files

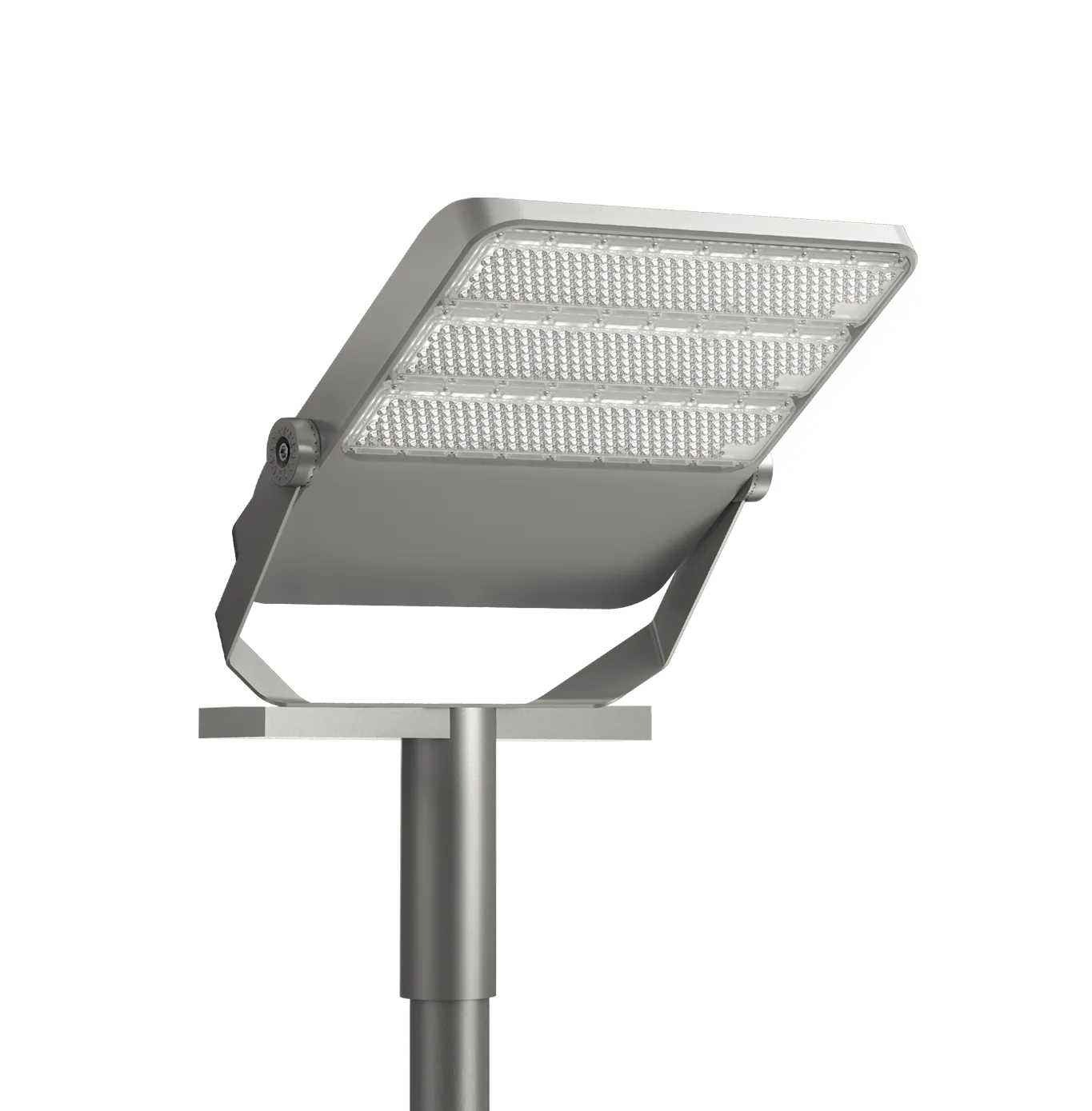

Star Flood Light with Lightweight

The grid of the heat sink is modularized with excellent heat dissipation and does not affect the structural strength of the product. 600W body only 12.8 kg, light and conducive to high- altitude installation.

Wide Power Coverage to Meet Different Requirement of Different Scenarios

20 deg

30 deg

40 deg

60 deg

90 deg

120 deg

36deg*80deg

NB-P60 deg

Friendly Structural Design

  • ● Robust bracket with tick marks.
  • ● Two reserved cable outlets are available for loop-in/ out connection, DALI dimming, and 0-10V dimming.

Specifications

Model

  • HD-FL17-100W
  • HD-FL17-150W
  • HD-FL17-180W
  • HD-FL17-200W
  • HD-FL17-240W
  • HD-FL17-300W
  • HD-FL17-450W
  • HD-FL17-500W
  • HD-FL17-600W

Wattage

  • 100W
  • 150W
  • 180W
  • 200W
  • 240W
  • 300W
  • 450W
  • 500W
  • 600W

CCT

  • 2700K/3000K/4000K/
  • 5700K/6500K

Lumen Output

  • 15,000Lm
  • 22,500Lm
  • 27,000Lm
  • 30,000Lm
  • 36,000Lm
  • 45,000Lm
  • 67,500Lm
  • 75,000Lm
  • 90,000Lm

Dimming

  • 0-10V/DALI-2

CRI

  • 70

Certifications

  • CB/CE/ENEC/RoHS

***Please confirm the information again with our sales before placing an order.
