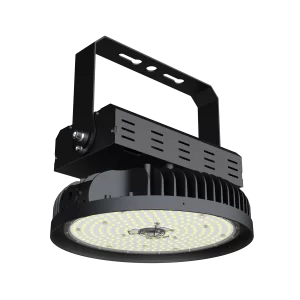

HB03 Widely Power 100W - 600W LED Highbay Light Series

HB03 is a versatile high bay light series with power options from 100W to 600W. It offers both high-voltage AC277-480V and low-voltage AC100-277V solutions, making it suitable for more applications which include warehouses, factories, supermarkets, logistics centers, shipyards, and aircraft manufacturers. And 400W-600W models are specially designed for large spaces and high installation situations. Moreover, by replacing traditional 800-1500W HID lamps, the 400W-600W HB03 models offer significant energy savings and promote a greener environment. With a low UGR< 25, HB03 ensures a comfortable working environment by reducing eye fatigue and minimizing operational errors. HB03 also provides various intelligent lighting options including 1-10V, Dali, Microwave sensor, daylight sensor, and Zigbee. Installation can be done using ring, hook, or u-bracket methods, and our experienced engineers will tailor the best solution to meet your specific requirements.

  • ● Power optional: 100W/150W, 200W, 240W, 300W, 400W, 500W, 600W.
  • ● High light efficiency is 150Lm/W., lumen output from 45,000Lm to 90,000Lm.
  • ● Voltage is AC100-277V and AC277-480V.
  • ● High permeability lens, beam angle 60deg, 90deg and 120deg.
  • ● UGR<25, uniform light, and a low glare value.
  • ● IP65 water-proof, suitable for wet locations.
  • ● The lifespan of the light is 54,000 hours and its maintenance is 78.24%.
  • ● 1-10V Dimming, DALI, Microwave sensor, Daylight sensor, and ZigBee optional.
  • ● Operating Temperature: -30°C to +50°C.
  • ● DLC 4.2 Premium.
  • ● 5 years warranty.
Contact us

To Large Spaces and High Installation Situations

400W-600W LED high-power high bay is suitable for large spaces and high installation situations, such as warehouses, factories, supermarkets, logistics centers, shipyards, and aircraft manufacturers.

URG<25 With PC Lens

Covers

HB03-covers

Sensor Optional

HB03-Sensor

Installations

Installations

Specifications

Model

  • HL-HB03-100W/150W
  • HL-HB03-200W/240W
  • HL-HB03-300W/400W
  • HL-HB03-500W/600W

Wattage

  • 100W-150W
  • 200W-240W
  • 300W-400W
  • 500W-600W

CCT

  • 4000K/5000K/
  • 5700K/6500K

Lumen Output

  • 16,000lm~22,500lm
  • 32,000lm~40,800lm
  • 48,000lm~68,000lm
  • 80,000lm/102,000lm

Dimming

  • 0-10V

CRI

  • Ra80

Certifications

  • AC277-480V:UL/DLC/ FCC/RoHS
  • AC100-277V: CE/CB/ ERP/ETL/SAA/DLC/ ENEC/RoHS

***Please confirm the information again with our sales before placing an order.
