HB16 LED High Bay Lights Versatile Cost-Effective and High-Performance Solutions

The HB16 LED High Bay Light Series is a practical and affordable lighting solution designed for warehouses, industrial plants, and large retail spaces. It features three light distribution options and versatile mounting with either hook rings and chains or U-shaped brackets to fit various installation scenarios. Equipped with a high-transmittance PC lens and top-quality Lumileds 2835 LED chips, the HB16 ensures low glare (UGR<28) and meets DLC PREMIUM standards, creating a comfortable and efficient work environment. Its interchangeable lenses and accessories help streamline inventory management and lower material costs, while the die-cast aluminum heat sink provides excellent heat dissipation for dependable, long-term performance.

  • ● Power optional: 100W, 150W, 200W, 240W.
  • ● Light efficiency up to 150Lm/W, lumen output from 15,000Lm to 36,000Lm.
  • ● High permeability lens, beam angle 60deg, 90deg and 120deg.
  • ● IP65 water-proof, suitable for wet locations.
  • ● Maximum material utilization, good heat management, the driver is longevity and reliability.
  • ● Operating Temperature: -30°C to +50°C, -22°F~+122°F.
  • ● 5 years warranty.
  • ● Certificates: UL, DLC 5.1 Premium.
Contact us

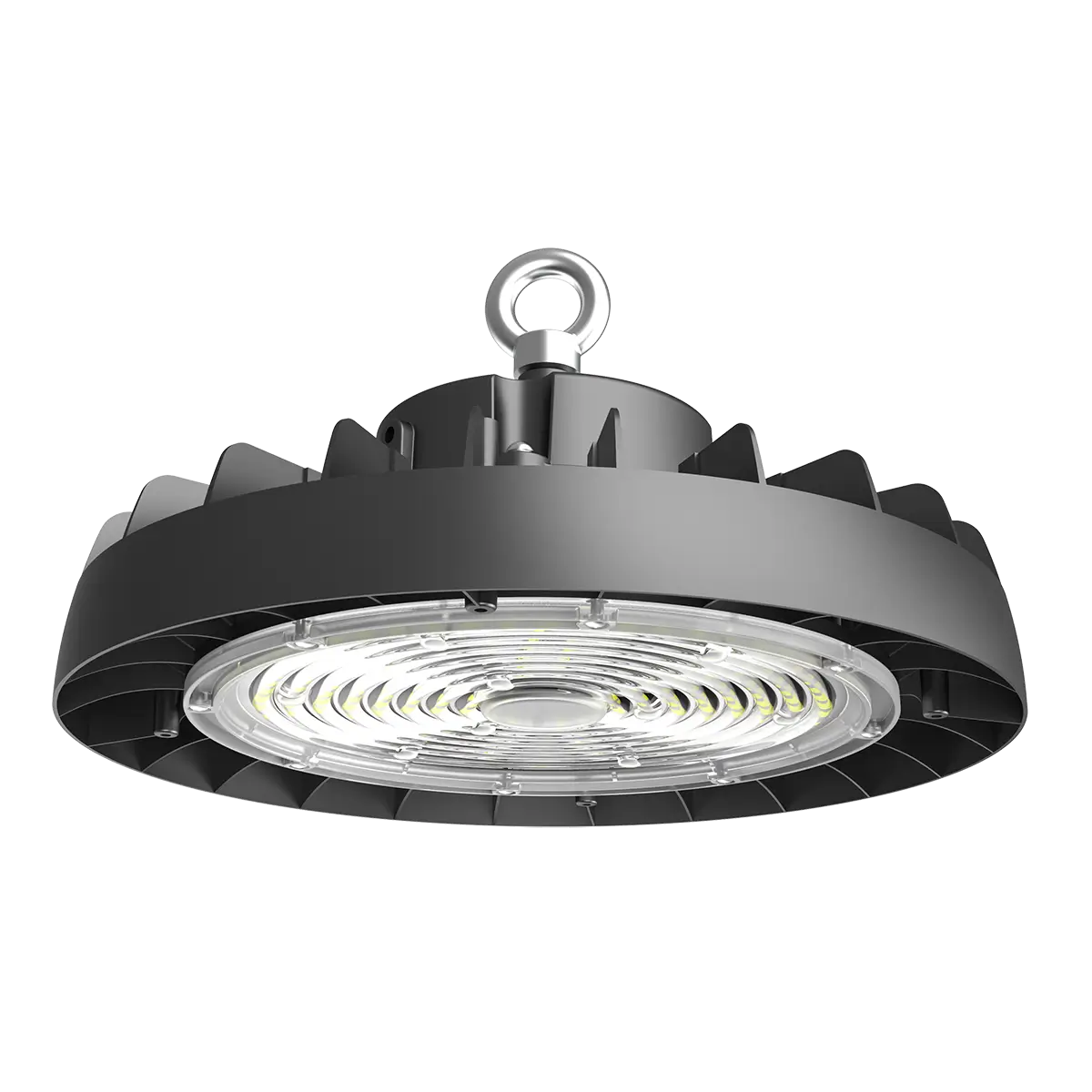

HB16 Highbay Light

UGR<28 (@60°&90°), DLC PREMIUM

The Lens undergoes professional light distribution design and utilizes high-transmittance PC material, combined with high-quality Lumileds 2835 LED chips. HB16 exhibits low glare UGR<28, meets DLC PREMIUM standards, and provides a comfortable lighting environment for workers.

Efficient Heat Dissipation

Efficient Heat Dissipation

The heat sink comprises die-casting aluminum profiles, ensuring rapid heat conduction and excellent heat dissipation. The holes around the heat sink, facilitate the efficient dispersal of heat.

Universal Lenses for Inventory Convenience

HB16 series features interchangeable lenses across all three models, ensuring sufficient heat dissipation while saving material costs. This is also good for the inventory management of distributors, thereby reducing stock pressure. Additionally, both the PC cover and aluminum cover accessories are also interchangeable.

Installation Accessories

Optic Lens

Aluminium Reflector

PC Reflector

Sling Chain

Sling Chain

Hook

Hook

Specifications

Model

  • HD-HB16-100W
  • HD-HB16-150W
  • HD-HB16-200W
  • HD-HB16-240W

Wattage

  • 100W
  • 150W
  • 200W
  • 240W

CCT

  • 2700K/3000K/4000K
  • 5000K/5700K/6500K

Lumen Output

  • 15,000lm
  • 22,500lm
  • 30,000lm
  • 36,000lm

Dimming

  • 0-10V

CRI

  • Ra70
  • Ra80

Certifications

  • UL/DLC/CE/CB/ENEC/RoHS

***Please confirm the information again with our sales before placing an order.
