SB03 Led Area Light with Power and CCT Tunable

SB03 is a modular led area light series. Two models, including 60W, 80W, 100W, 150W, 185W, 240W, 300W, input voltage of 100-277V/240-480V. And also designed a color temperature and power adjustments scheme, to meet the needs of the selection of a more cost-effective program. Modular PC lens, easy to replace, saving mold and maintenance costs. Specifically designed lens Types Ⅲ, Ⅳ, and Vallow architects maximum freedom to design any layout without restraint. These optics are engineered for maximum light output. The integrated cooling fin provides excellent thermal dissipation. this design allows the fixture to have extremely long life hours. SB03 Including a multitude of mounting options, surge protection devices, IOT photocell capability, and the most technologically advanced LEDs on the market, the LED is ready to conquer the lighting landscape.

  • ● Wattage Tunable: 60W/80W/100W, 80W/120W/150W, 100W/120W/185W, 150W/200W/240W, 185W/200W/240W, 185W/240W/300W.
  • ● CCT tunable: 4000K/5000K/5700K, 3000K/4000K/5000K.
  • ● Light efficiency up to 160Lm/W., lumen output from 9,600Lm to 48,000Lm.
  • ● Beam angle Type III,Type V, Type IV, 90*120°dg, 60*60deg and 90deg.
  • ● IP66 waterproof, IK08 rating.
  • ● Bi-Level Sensor Control: Fixture has the option to add an occupancy sensor allowing bi-user.
  • ● DLC 4.3 Premium.
  • ● 0-10V dimming, DMX., DALI, Daylight sensor, microwave sensor optional.
  • ● 5 years warranty.
  • ● Certificates DLC 4.3, UL, CUL, CE, DLC, SAA available.
Contact us
PC Lens is Easy to Replace

Modular lens, easy to replace, saving mold and maintenance costs.

CCT And Wattage Tunable
Power(W)
LOW
MID
HIGH
60W
80W
100W
80W
120W
150W
100W
150W
185W
150W
200W
240W
185W
240W
300W
CCT(K)
A
A+B
B
4000K
5000K
5700K
3000K
4000K
5000K

Installation Method

Our engineers designed a variety of installation methods for the SB03 to meet the installation requirements of a variety of different environments. It’s suitable for outdoor parking lots, squares, highways, airports, docks, stadiums, and other large outdoor places.

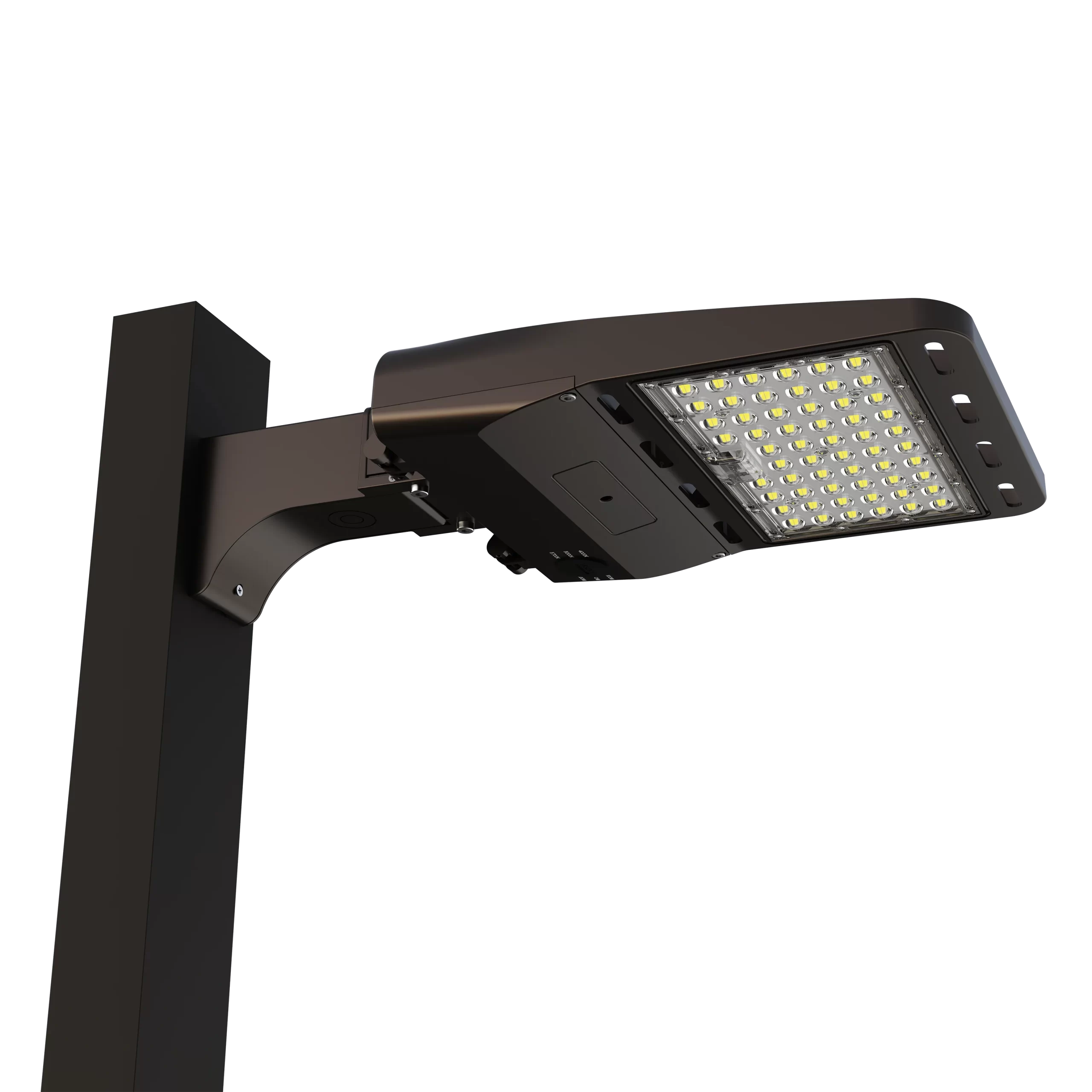

AL03-LED AREA LIGHT (3)
AL03 led area light with CCT and wat tunable
AL03-LED AREA LIGHT (1)
AL03-LED AREA LIGHT

Specifications

Model

  • HD-PL03-A
  • HD-PL03-B
  • HD-PL03-C
  • HD-PL03-D
  • HD-PL03-E

Wattage

  • 60W/80W/100W
  • 80W/120W/150W
  • 100W/150W/185W
  • 150W/200W/240W
  • 150W/200W/240W

CCT Tunable

  • 3000K/4000K/5000K
  • 4000K/5000K/5700K

Lumen Output

  • 9,600lm-16,000lm
  • 12,800lm-24,000lm
  • 16,000lm-29,600lm
  • 24,000lm-38,400lm
  • 29,600lm-48,000lm

Dimming

  • 0-10V/DALI-2

CRI

  • 70/80

Certifications

  • ETL / DLC 5.1 / CB /CE / RoHS

***Please confirm the information again with our sales before placing an order.
