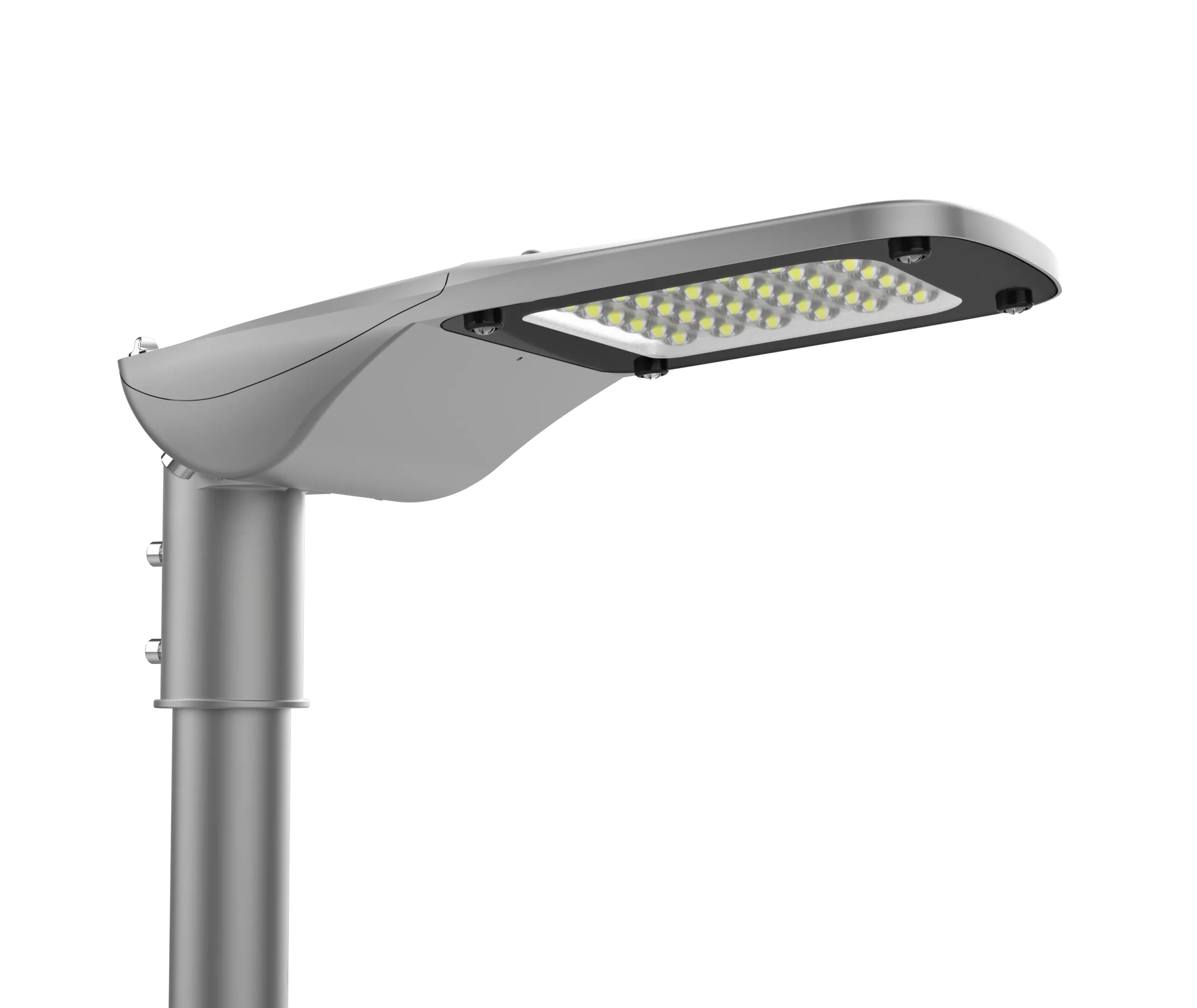

SL03 40W-150W Led Street Light Series

SL03 is a LED street light series, which has three-size modulars with wattages 40w-50w- 60w, 80w-90w-100w, and 120w-130w-140w-150w. Adopt a high-power LED patch (Lumileds/Osram) light source, the driver can match any brand. SL03 has designed three photometric diagrams, including T2, T3, and T4, which are suitable for most two-lane, three-lane, and four-lane urban roads, highways, and country lanes. SL03’s heat dissipation design with a smooth surface eliminates the risk of accumulation of dust and dirt in harsh environments. Die-cast aluminum heat dissipation radiator, lightweight and faster heat dissipation, ensures the optimal performance of heat management.

  • ● Light efficiency 130Lm/W. and 140lm/W optional.
  • ● Lumen output from 5,200Lm to 21,000Lm.
  • ● Have a patent of appearance and utility model.
  • ● Beam angle : Type II, Type III, Type IV, Type V.
  • ● IP66 water-proof & 10KV surge protection.
  • ● Operating Temperature: -30°C to +45°C.
  • ● Life Span L70B50 50,000h@35℃.
  • ● 5 years warranty.
  • ● Certificates CE, RoHS available.
Contact us

Light efficiency 130Lm/W and 140lm/W optional

Adopt high-power LED patch (Lumileds/Osram) light source, power supply can match any brand.

Three photometric diagrams, including Type II, Type III, and Type IV

T2

Type II

T3

Type III

T4

Type IV

SL03 LED Street Light with integrated outdoor sensor

Best choice of energy saving

With a photocell and Integrated outdoor sensor, SL03 led street light become achieves the best energy-saving solution.

IP66-SL03 LED Street Light who UV-resistant and anti-corrosive

Excellent self-cleaning ability

Streamlined design with a smooth surface eliminates the risk of accumulation of dust and dirt in harsh environments.

SL03 LED Street Light build in spd 10kv

Built-in 10KV surge protector

Protection against indirect and direct lightning or other transient overvoltage surges.

Specifications

Model

  • HD-SL03-40W
  • HD-SL03-50W
  • HD-SL03-60W
  • HD-SL03-80W
  • HD-SL03-90W
  • HD-SL03-100W
  • HD-SL03-120W
  • HD-SL03-130W
  • HD-SL03-140W
  • HD-SL03-150W

Wattage

  • 40W
  • 50W
  • 60W
  • 80W
  • 90W
  • 100W
  • 120W
  • 130W
  • 140W
  • 150W

CCT

  • 3000K(130Lm/W)
  • 4000K(140Lm/W)

Lumen Output

  • 5,200lm-5,600lm
  • 6,500lm-7,000lm
  • 7,800lm-8,400lm
  • 10,400lm-11,200lm
  • 11,700lm-12,600lm
  • 13,000lm-14,000lm
  • 15,600lm-16,800lm
  • 16,900lm-18,200lm
  • 19,500lm-21,000lm

Dimming

  • Photocell Motion Sensor

CRI

  • Ra70

Certifications

  • CE/RoHS

***Please confirm the information again with our sales before placing an order.
