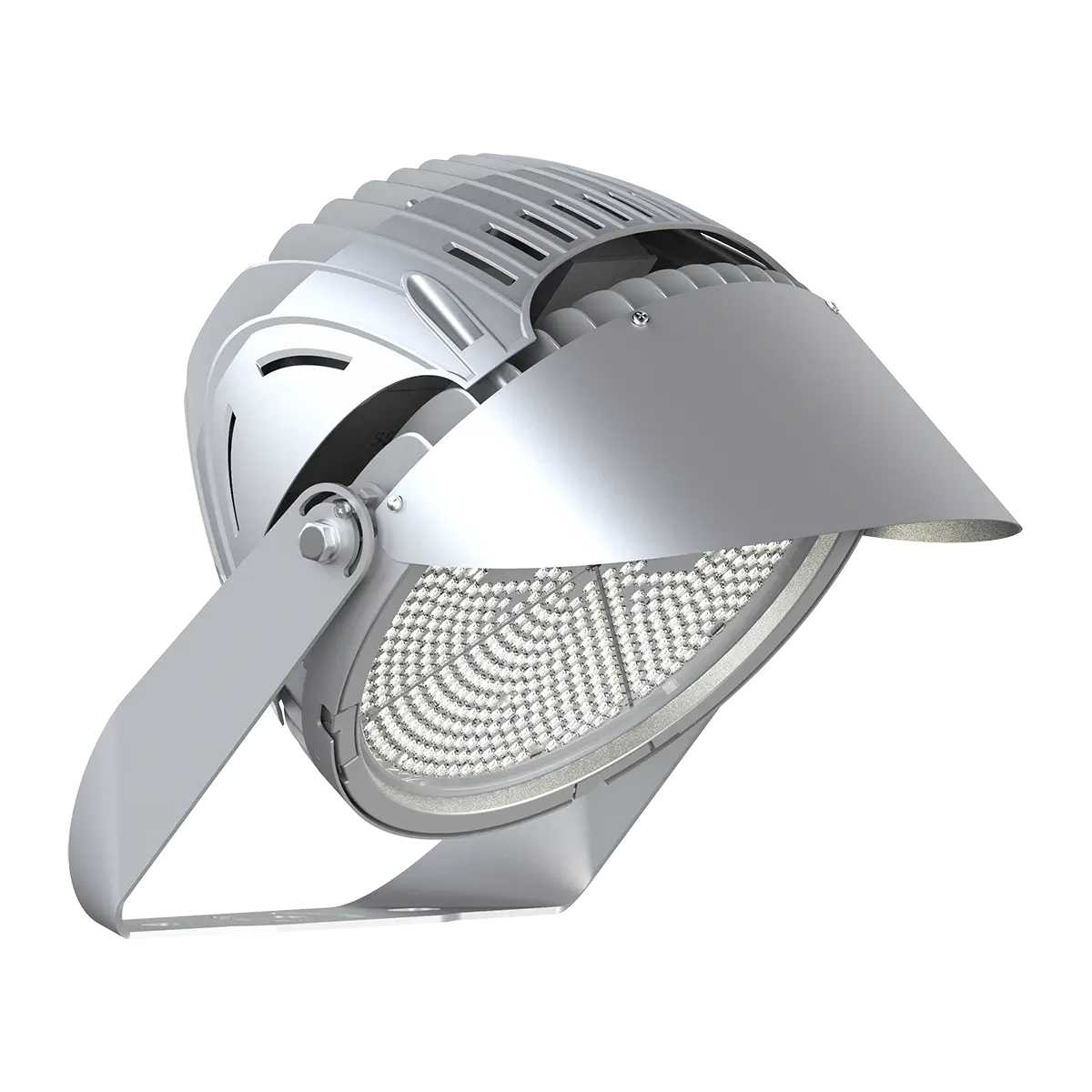

SP9.5 High-Performance LED Sports Lights for Outdoor Stadiums

The SP9.5 is an ultra-high-performance stadium light with a quick-change lens, 3-in-1 CCT and power-selectable sports lighting solution. Designed to accommodate diverse installation preferences, the SP9.5 is compatible with U-bracket, top arm, and SF-bracket mounting options. To further enhance light control and uniformity, the fixture is available in both visor and grille styles. These design elements, combined with its exceptional brightness, make the SP9.5 an ideal choice for illuminating a wide range of large-scale outdoor spaces, including expansive stadiums, towering high-rise buildings, extensive airport aprons, busy harbor terminals, critical infrastructure like bridges, and public gathering areas such as plazas.

  • ● 3-in-1 wattage selectable 300W-400W-500W and 680W-750W-800W are optional.
  • ● High light efficiency up to 160Lm/W, lumen output from 45,000Lm to 128,000Lm.
  • ● IP66 water-proof, IK08 mechanical impact protection code, 10KV surge protection.
  • ● Tool-less quick-change lenses.,easy to prepare for the library.
  • ● The visor is designed to trim the excess upward light for excellent spill light control and glare. limitation.
  • ● The built-in reflection structure makes less light loss and good light uniformity.
  • ● Narrow Beam angle: 15degree, 20degree, 30degree, 40degree, 45degree, 60degree light distribution.
  • ● 5 years warranty, Life Span L70B50 100,000h@25℃.
  • ● Certificates: CE, UL, DLC, RoHS.
Contact us
5 years warranty

Patent Design

One Day Lead Time

LED light certifications
light features

Tool-less Quick Lens Replacement

SP9.5 incorporates a latch design in its structure,
enabling convenient and rapid lens replacement. This benefits distributors and agents by facilitating inventory management and lowering stock pressure.

SP9.5 introduction
SP9.5 LED stadium light

3-IN-1 Wattage Selectable

S: 300W – 400W – 500W

SP9.5 3-in-1 Wattage Selectable

Economical Optional 3-IN-1 High Power SP9.5 Sports Light

Economical 1:1 replacement lighting innovation designed to provide high power lighting for different venues to meet a wider range of markets. Opto-electrical separation design to reduce material costs. Separation of power supply and heat sink, extending the overall lamp life. Quick plug-and-play wiring for easy installation and maintenance.

L: 600W/ 680W/ 750W/ 800W

SP9.5 low power LED light

M: 300W/ 400W/ 500W

SP9.5 LED stadium light In-distribution box

In-distribution box power
supply installation

Independent or in-distribution box power supply installation, suitable for replacing HID products, easy installation, and maintenance.

Specifications

Model

  • HD-SP9.5-300W-400W-500W
  • HD-SP9.5-680W-750W-800W

Wattage

  • 300W/ 400W/ 500W
  • 600W/ 680W/ 750W/ 800W

CCT

  • 3000K/ 4000K/
  • 5000K/ 5700K/ 6500K

Lumen Output

  • 45,000Lm~80,000Lm
  • 90,000Lm~128,000Lm

Dimming

  • 0-10V Dimming/ PWM/
  • DALI/ DMX/ Synapse

CRI

  • 70/80/90,
  • TLCI>90 Optional

Certifications

  • CE / UL / DLC / RoHS

***Please confirm the information again with our sales before placing an order.
